CBCT vs Panoramic X-Ray: Key Differences and When Each Is Needed

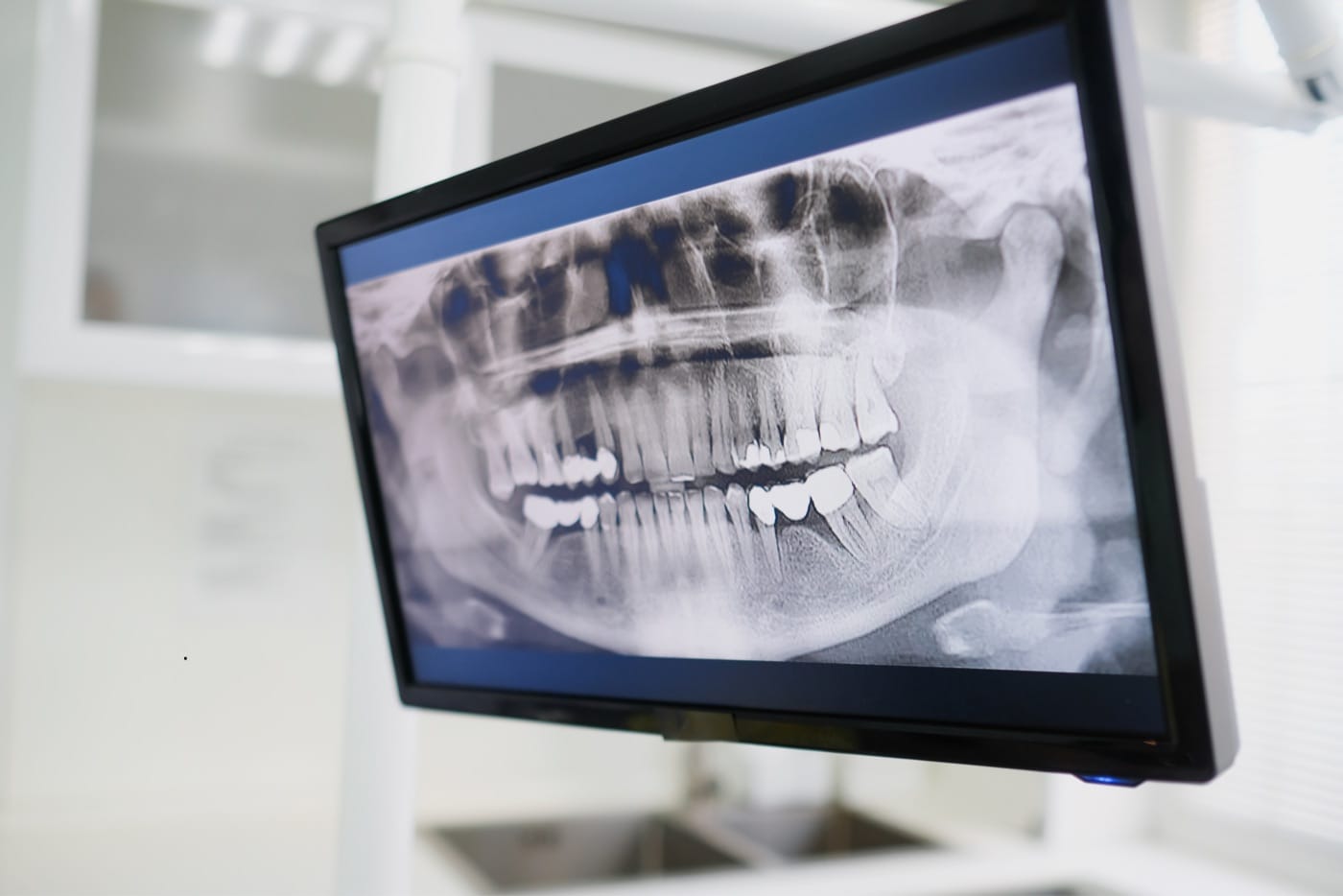

A panoramic radiograph (orthopantomogram/OPG) is an imaging technique that captures all of the teeth, the jaw bones and the surrounding anatomy in a single two-dimensional (2D) image.

When is it used?

• General assessment of the mouth and routine review
• Screening for decay and periodontal disease
• Monitoring of tooth development (children and adolescents)
• Orthodontic planning
• Simple surgical assessment

Dental CBCT — cone beam computed tomography — is an advanced imaging technique that produces a three-dimensional (3D) image of the jaw region.

When is it used?

• Dental implant planning — measurement of bone height and density
• Impacted wisdom tooth assessment — relationship with the nerve canal
• Pre-surgical anatomical mapping before oral surgery
• Root canal treatment — assessment of complex root anatomy
• Evaluation of the sinus floor
• Assessment of cysts and tumours
• Fracture analysis after trauma

A panoramic radiograph gives adequate information in the following situations:

1. Routine check-up — 6-monthly or annual review
2. Screening for decay — identification of interproximal and root decay
3. Orthodontic planning — alignment and developmental assessment
4. Periodontal assessment — general view of bone levels
5. Simple surgery — assessment before the extraction of erupted teeth

Where a 2D panoramic is not sufficient, 3D CBCT is essential.

1. Implant Planning

Implant success depends on accurate measurement of bone height, width and density. On a panoramic radiograph, bone dimensions appear magnified by 15–20%, which can lead to inaccurate measurements. CBCT gives true-size, millimetrically precise measurement.

2. Impacted Wisdom Tooth Surgery

The exact relationship between an impacted lower tooth and the inferior alveolar nerve canal is difficult to determine on a panoramic. CBCT clearly shows the exact distance and orientation of the nerve canal relative to the tooth, which minimises the risk of nerve injury during surgery.

3. Endodontic (Root Canal) Assessment

Complex root anatomy, additional canals, root curvature and the extent of periapical lesions may not be adequately assessed on a panoramic. High-resolution CBCT allows the root canal system to be examined in detail.

4. Sinus Lift Planning

Where an implant is planned in the posterior maxilla, the height of the sinus floor and the condition of the sinus membrane need to be evaluated in 3D.

💬 Dr Aykut Gürel: "In our clinic we routinely perform CBCT before every implant placement because a 2D panoramic radiograph can overestimate bone height by 15–20% — and the inferior alveolar nerve canal position is only fully visible in 3D. Spending an extra €40–60 on a CBCT scan often prevents far more expensive complications down the line, particularly nerve injury or implant failure."

A cross-sectional study is the arrangement of CBCT data for treatment planning. Before implant surgery specifically, this allows:

• Measurement of bone height and width
• Determination of the distance to the nerve canal
• Calculation of the distance to the sinus floor
• Planning of the ideal implant length and angulation

At our clinic, cross-sectional studies are prepared and delivered digitally within 2–3 days.

Both techniques involve a very low radiation dose:

• Digital panoramic: 0.01–0.02 mSv — roughly twice the daily natural background dose
• CBCT: 0.03–0.20 mSv — about half the dose from an Istanbul–London flight

For comparison, a medical CT of the head is around 2 mSv — so dental CBCT delivers 10–60 times less radiation than that.

• Routine check-up, decay screening, orthodontic monitoring → digital panoramic radiograph is sufficient (€20)
• Implant planning, impacted wisdom tooth, complex root canal, sinus lift, trauma → dental CBCT is essential (€40 single arch / €60 dual arch)
• Children → panoramic preferred; CBCT only when clinically indicated and at the lowest achievable dose

At our Maltepe Fındıklı clinic we offer digital panoramic X-ray, single- or dual-arch dental CBCT and cross-sectional studies. External referrals are welcome — if your dentist abroad has requested a specific scan, we can schedule same-day or next-day.

Free X-Ray Review via WhatsApp

If you already have a panoramic radiograph or CBCT from another clinic and want a second opinion before travelling, send it via WhatsApp — we will review the imaging and advise whether additional scans are needed, free of charge.

📞 +90 216 572 05 20 · WhatsApp · Contact page

The clinical information in this article is based on the following independent academic sources:

1. Tyndall DA, Price JB, Tetradis S, et al. Position statement of the American Academy of Oral and Maxillofacial Radiology on selection criteria for the use of radiology in dental implantology. Oral Surg Oral Med Oral Pathol Oral Radiol. 2012;113(6):817-826. https://pubmed.ncbi.nlm.nih.gov/22669150/
2. SEDENTEXCT Project (Horner K et al.). Radiation protection N° 172: Cone beam CT for dental and maxillofacial radiology — Evidence-based guidelines. European Commission, Directorate-General for Energy. 2012. https://op.europa.eu/en/publication-detail/-/publication/0014a31d-1f4d-4ec2-bb1e-7a8a36e7c1c7
3. Bornstein MM, Scarfe WC, Vaughn VM, Jacobs R. Cone beam computed tomography in implant dentistry: a systematic review focusing on guidelines, indications, and radiation dose risks. Int J Oral Maxillofac Implants. 2014;29 Suppl:55-77. https://pubmed.ncbi.nlm.nih.gov/24660190/
4. Patel S, Brown J, Pimentel T, Kelly RD, Abella F, Durack C. Cone beam computed tomography in Endodontics — a review of the literature. Int Endod J. 2019;52(8):1138-1152. https://pubmed.ncbi.nlm.nih.gov/30868610/
5. International Commission on Radiological Protection (ICRP). Radiological Protection in Cone Beam Computed Tomography (CBCT). ICRP Publication 129. Ann ICRP. 2015;44(1). https://www.icrp.org/publication.asp?id=ICRP%20Publication%20129
